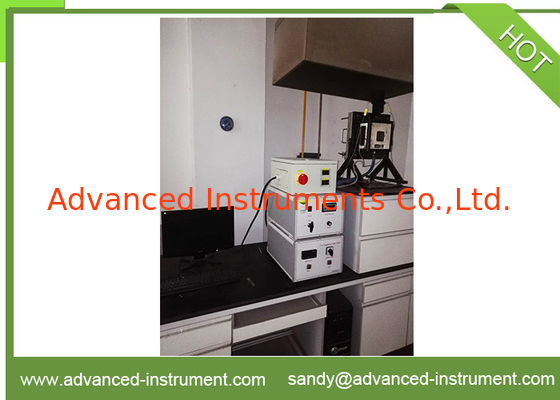

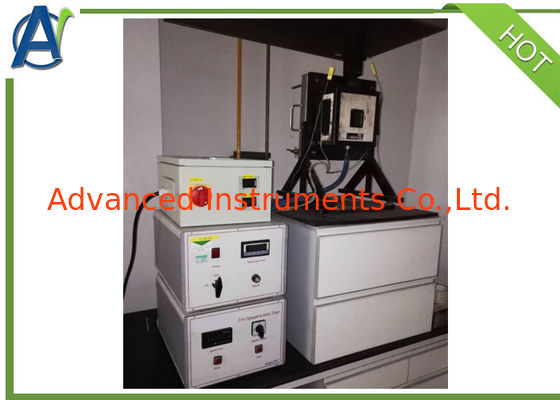

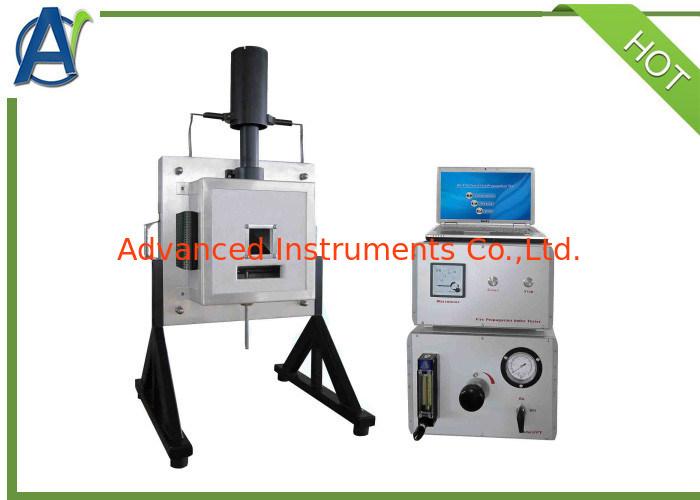

BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
  • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

    Detalhes do produto:

    Lugar de origem: CHINA
    Marca: AI
    Certificação: ISO
    Número do modelo: FPT

    Condições de Pagamento e Envio:

    Quantidade de ordem mínima: 1 conjunto
    Preço: Negociável
    Detalhes da embalagem: Caixa de madeira compensada
    Tempo de entrega: 60 dias
    Termos de pagamento: Western Union, T/T, L/C
    Habilidade da fonte: 20 séries por mês
    contacto
    Descrição de produto detalhada
    Padrão de teste: Teste de Índice de Propagação de Fogo BS476-6 Abastecimento de gás: G112, conforme especificado em BS 4947
    Peso: 46 kg Garantia: 1 ano
    Cor: Branco Fonte de energia: 230 volts de 10 ampères nominais

    BS 476-6 Fire Propagation Index Tester

    INTRODUCTION

    BS 476 part 6 specifies a method of test, the result being expressed as a fire propagation index, that provides a comparative measure of the contribution to the growth of fire made by an essentially flat material, composite or assembly. It is primarily intended for the assessment of the performance of internal wall and ceiling linings.​





    FEATURE

    • Stainless steel support frame andCalcium silicate board combustion chamber.

    • Three kinds of sample holders for different thickness of the specimens.

    • Low reflective black finished mild steel Chimney and Cowl assembly complete with thermocouple mounting points.

    • Compliant stainless steel gas burner.

    • Two K type mineral insulated thermocouples complete with ceramic insulators.

    • Two pencil type heaters with 1000w installed in combustion chamber.

    • Control gas instrumentation including electronic gas on/off valve, flow regulating valve, flow meter and manometer.

    • Intelligent single phase power controller with feedback loop for accurate control of electric heating elements

    • DAQ record automatically the mV output from the thermocouples of the flue gases throughout the duration of the test.

    • According to the test time, automatically adjust the output power.

    Data Acquisition system:

    • Prompted software interface

    • Data recording and display of cowl temperature against time

    • Data recording and display of ambient temperature against time

    • Display of power value in kW

    • Calibration routine

    • Calculation of output rise and calibration value

    Installation requirements

    Electrical 230 volts Nominal 10 Amps
    Ambient Temperature 10°C to 35°C
    Gas supplies The gas supply specified in the Standard is Standard test gas G112, as specified in BS 4947
    Flow Gas flow for burner adjustable from 0 to 5 nl/min
    Pressure 1KPa
    Dimensions

    Apparatus: 400mm (W) x 600mm x (H) x 300mm (D)

    Control module: 400mm (W) x 500mm x (H) x 400mm (D)

    Weight 46KG
    Applicable standards BS476-6
