High Current Generator Primary Current Injection Tester Kit
I. Introduction:
Primary current injection tester is an essential equipment used for electrical debugging to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units.
Primary cuurent injection test kit is a short-term or intermittent work device and characterized by small size, light weight, good performance, easy use and maintenance.
Features:
1. Two ammeters can supervise different measurement range.
2. With indicator lighting and button, this high current generator is easy to operate

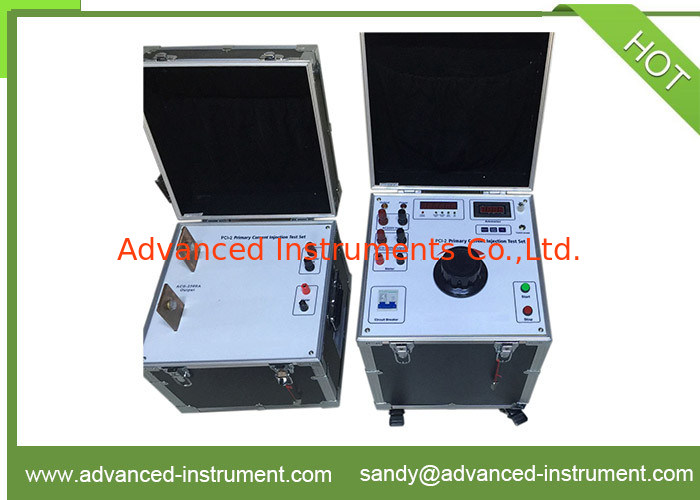

3. This primary injection kit adopts integrated and separted structure, easy to move.
4. The primary current injection test set capacity is designed based on 5-minute short-term work system. For intermittent work, working time should be less than 2.5 minutes, before continuing to work it should be shut down for 10 minutes so that all parts of the machine can cool down.
III. Specifications:
| Model |
Capacity (kVA) |
Junior Range
|
Secondary Range
|
Dimensions (mm)
L×W×H
|
Weight
( kg)
|
Structure |
| V1 |
A1 |
V2 |
A2 |
| PCI-3/500 |
3 |
220 |
15 |
6 |
500 |
430×338×550 |
45 |
Integrated |
| PCI-6/1000 |
6 |
220 |
27 |
6 |
1000 |
500×380×600 |
65 |
Integrated |
| PCI-12/2000 |
12 |
380 |
31.6 |
6 |
2000 |
580×400×750 |
105 |
Integrated |
| PCI-15/2500 |
15 |
380 |
39.5 |
6 |
2500 |
600×430×790 |
145 |
Integrated |
| PCI-24/4000 |
24 |
380 |
63 |
6 |
4000 |
640×450×820 |
180 |
Separated |
| PCI-30/5000 |
30 |
380 |
79 |
6 |
5000 |
600×430×900
300×500×500
|
145
135
|
Separated |
| PCI-36/6000 |
36 |
380 |
95 |
6 |
6000 |
600×430×900
300×500×500
|
150
140
|
Separated |
| PCI-48/8000 |
48 |
380 |
126 |
6 |
8000 |
600×450×950
350×550×550
|
180 |
Separated |
| PCI-60/10000 |
60 |
380 |
158 |
6 |
10000 |
800×600×1100
380×550×600
|
200 |
Separated |
| Working environment |
0-50℃, ≤85%RH |
The capacity and maximum current output could be customized according to the requirements of customer if you can not find the one you need in this table.
|

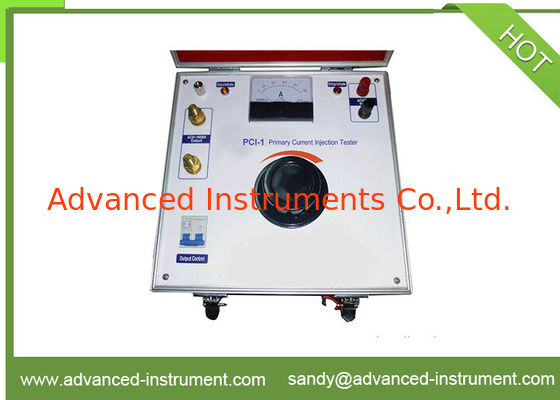

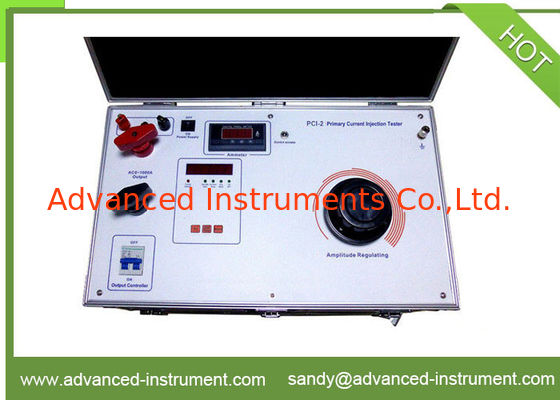

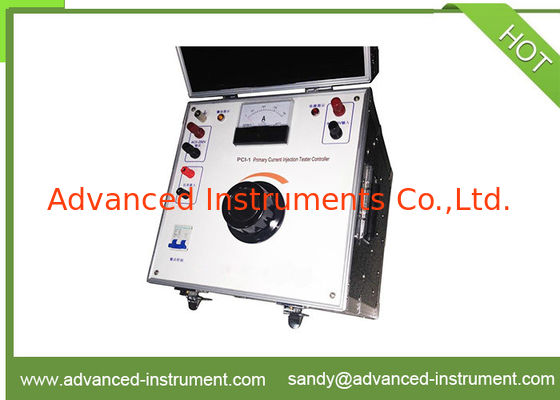

Picture of Primary Current Injection Test Kit
