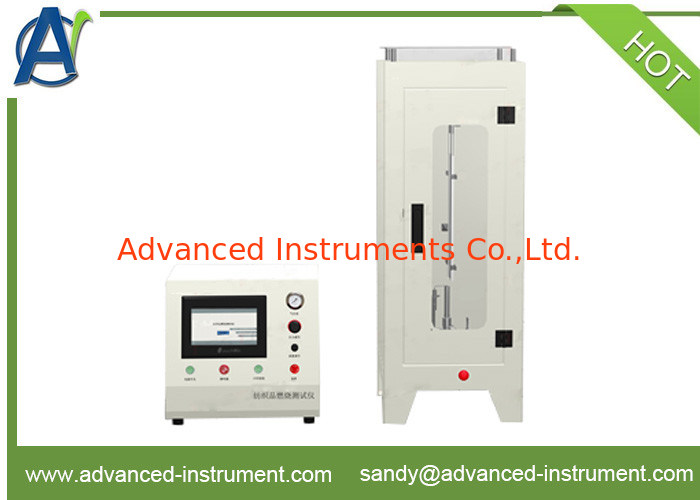

Vertical Flammability Test Equipment for Children's Sleepwear

Introduction
Due to the young children lack of awareness of danger, when pajamas comes into contact with fire, it can cause burning and jeopardize safety. This makes safty for the flammability of children's sleepwear is one of the more important problem. Some developed countries have formulated relevant technical regulations and standards,fire-retardant performance of requirements for children's sleepwear, and test in accordance with the method specified in the regulations.
This Vertical Flammability Test Equipment is designed based on CFR 1615/1616 children's pajamas, CA TB117 related standard. It is mainly used in testing the retardant performance of children's pajamas or fabric when exposed to a small fire .

Standard:

• CFR 1615/1616 Children's Sleepwear Vertical Flammability Test ;
• CA TB117 US Upholstered Furniture Fabrics and Fillers Flammability Standards;

Main features:
1, Box is painted with transparent viewing window;
2, The combustion chamber dimensions: length 329mm x width 329mm x height 767mm;
3, The Vertical Flammability Test Equipment has electronic automatic ignition device;
4, Burner automatic timing and positioning;
5, The ignition time set arbitrary 0 ~ 99.99 seconds, continued burning time and flame time are automatically recorded, digital display;
6, The flame height can be adjusted freely, flame temperature measuring device can be configured;
7, "Push-pull" rack fixture;
8, The burner is fixed to the sliding track, easy to operate, the needle valve can adjust the flame height;
9, Depending on the test samples, there are multiple samples holder to choose;

Technical Specifications:
