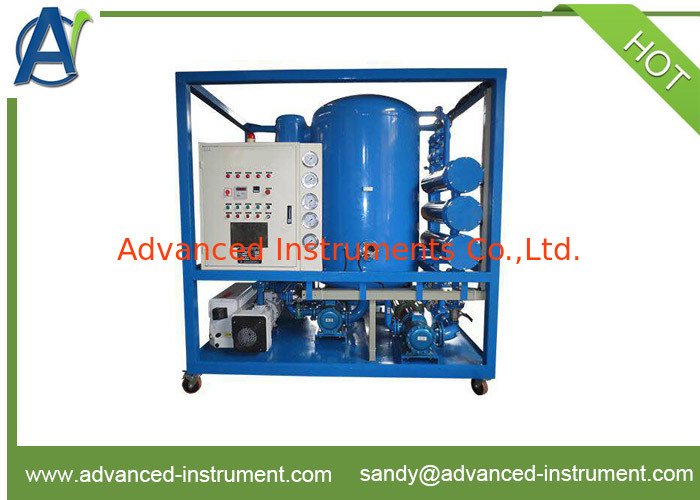

4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

    Detalhes do produto:

    Lugar de origem: CHINA
    Marca: AI
    Certificação: ISO
    Número do modelo: VTD-4

    Condições de Pagamento e Envio:

    Quantidade de ordem mínima: 1 conjunto
    Preço: Negociável
    Detalhes da embalagem: Estojo de madeira
    Tempo de entrega: 30 dias
    Termos de pagamento: D/P, T/T, Western Union
    Habilidade da fonte: 100 conjuntos por mês
    contacto
    Descrição de produto detalhada
    Função: purificar óleo de transformador usado Capacidade nominal: 4000L/H.
    Vazio de trabalho: -0,06~0,099MPa Fonte de energia: 50 Hz, 380 V, 3 fases 4 fios
    Potência total: 52KW Operação barulhenta: ≤80db (a)

    VTD-4 Double Stage High Vacuum Oil Purifier for Transformer Oil

                                         4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification





    ​I.Application:

    This transformer oil purifier is mainly used to remove gas,water and impurities in insulation oil and improve transformer oil's dielectric strength.It can also be used for pumping vacuum for transformer,vacuum oil injection and thermal oil circulation.



    II.Technical specifications

    • Model:VTD-4 Transformer oil purifier
    • Nominal capacity:4000L/h
    • Working vacuity:-0.06～0.099 MPa
    • Limit vacuity:≤5-8Pa
    • Working oil temperature:45～65℃
    • Working pressure:≤0.5Mpa
    • Power supply:50Hz,380V,3 phase 4 wire
    • Heating power:48Kw
    • Total power:52kw
    • Head:≥15m
    • Operation noisy:≤80dB(A)
    • Diameter of oil inlet/outlet:42/42mm
    • Continuous operation time:≥200 hours
    • Average faultless working time:≥5000 hours



    III.Index of clean transformer oil

    1 Water content ≤10ppm
    2 Gas content ≤0.5%(by volume)
    3 Filter accuracy ≤1µm
    4 Breakdown voltage ≥70KV(Ball)
    5 Ethane content Null
