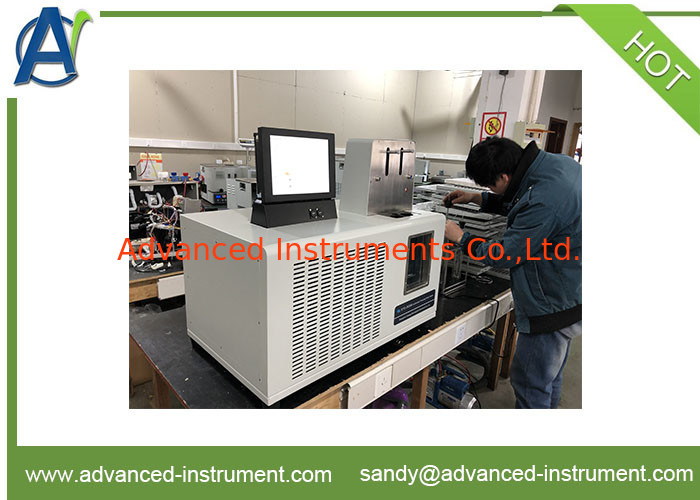

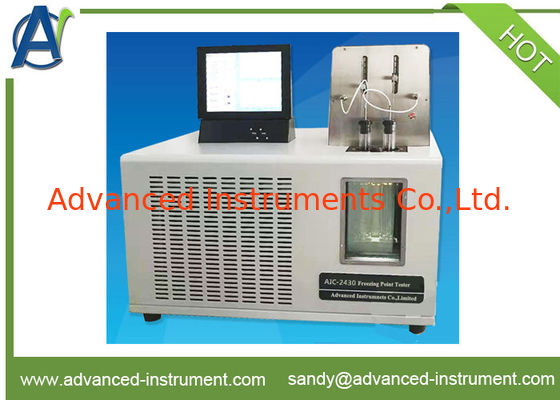

Automatic Freezing Point Tester
Summary
The automatic freezing point tester is designed and made as per the Industrial Standard of People’s Republic of China GB/T 2430 ,SH/T0090-1991(2000), ASTM D1177,D2386 Standard Test Method for Freezing Point of Engine Coolant. It can be used to test freezing point of engine coolants and condensation liquids.
Main features
1. The cold bath is made of stainless steel,double glass observing window,with the advanced temperature control technology,the
lowest temperature degree is -70℃,the temperature accuracy is ±0.5℃,complying with standard GB/T 2430,SH/T 0090 and ASTM D1177,D2386 for the freezing point test requirement.

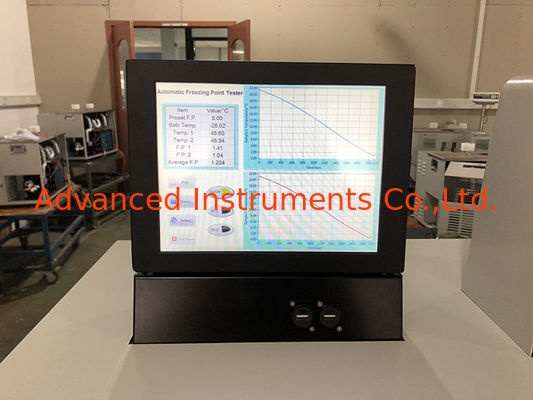

2.Automatically judge the freezing point temperature.
3.According to the different configuration,it can be used to test the freezing point etc.indexes of jet fuel,engine coolant and its concentrated solution,it's a multipurpose freezing point tester.
4.It's the floor stand structure,the work table-board is made of stainless steel,concise design,nice appearance,convenient usage,fully furnished.
5.The maximal characteristic:integrated to measure jet fuel freezing point and engine coolant freezing point;automatically stirring sample and judging the freezing point temperature,fast cooling,high precision temperature control,full spraying plastic case,wear well.
Technical specifications
| 1 |
Power supply |
AC 220 V±10%, 50 Hz |
| 2 |
Working bath |
stainless steel,double vacuum glass observing window |
| 3 |
Freezing point range |
-54℃～2℃ |
| 4 |
Cold bath measurement temperature |
-70℃～20℃ |
| 5 |
Temperature controlling accuracy |
±0.5℃ |
| 6 |
Bath liquids stirring |
electric stirring.the power is 6W,1200r/min |
| 7 |
Refrigerator system |
imported refrigerator compressor |
| 8 |
Sample stirring |
mechanical stirring is 0～120r/min,continuously adjustable |
| 9 |
Ambient temperature |
≤30℃ |
| 10 |
Relative humidity |
≤85% |
| 11 |
Maximum power consumption |
2000W |
| 12 |
Dimension |
560㎜×550㎜×810㎜ |
