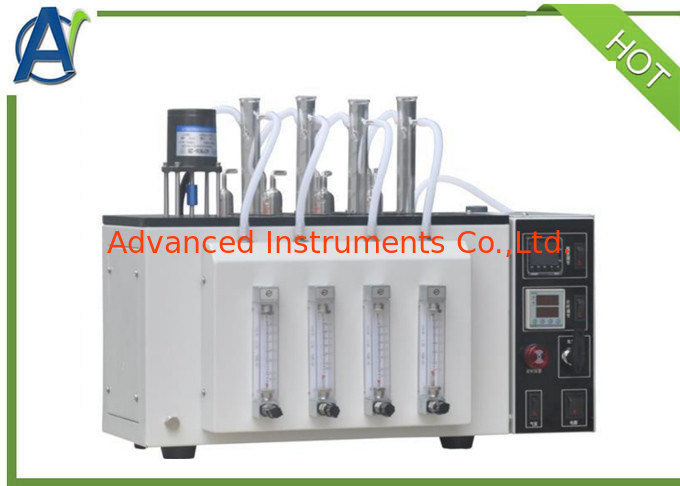

ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil

ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil

    • ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil
    • ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil
    • ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil
    • ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil
  • ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil

    Detalhes do produto:

    Lugar de origem: CHINA
    Marca: AI
    Certificação: ISO
    Número do modelo: AIC-2440

    Condições de Pagamento e Envio:

    Quantidade de ordem mínima: 1 conjunto
    Preço: Negociável
    Detalhes da embalagem: Cartão duro
    Tempo de entrega: 30 dias
    Termos de pagamento: L/C, T/T, Western Union
    Habilidade da fonte: 20 séries por mês
    contacto
    Descrição de produto detalhada
    Padrões: ASTM D2440 Método de aquecimento: Banho de óleo (banho de metal é opcional)
    Escala de controlo da temperatura: Ambiente ~ 120 ℃, ± 0,1 ℃ Mostrar: Digital
    Fonte de energia: AC220V, 50HZ Tamanho: 562x308x280mm
    Peso: 39 kg Potência total: 2000W

    ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil





    Introduction:

    The oxidation stability test of mineral transformer oils is a method for assessing the amount of sludge and acid products formed in a transformer oil when the oil is tested under prescribed conditions. Good oxidation stability is necessary in order to maximize the service life of the oil by minimizing the formation of sludge and acid.

    Features:

    ◆The Insulating Oil Oxidation Stability Tester is a desktop, including heating bath and accurate flowmeter.

    ◆Glass test tube meets standard requirements;

    ◆Electronic timer, digital display, with wind alarm;

    ◆Precision flowmeter regulates the gas flow, independent flow control;

    ◆This Insulating Oil Oxidation Stability Tester adopts imported Omron PID thermostat, digital display temperature, accuracy 0.1℃.




    Specifications:

    Applicable standard ASTM D2440,SH/T0206,IEC74
    Heating method Oil bath heating(Metal bath is optional)
    Temperature control range Ambient~120℃,±0.1℃
    Flow control Precision flow meter
    Timing mode Digital display timer
    Working unit 4 tubes
    Power supply AC220V 50HZ
    Total power 2000W
    Dimension 562x308x280mm
    Weight 39KG



     ASTM D2440 Oxidation Stability Tester for Mineral Insulating Oil
