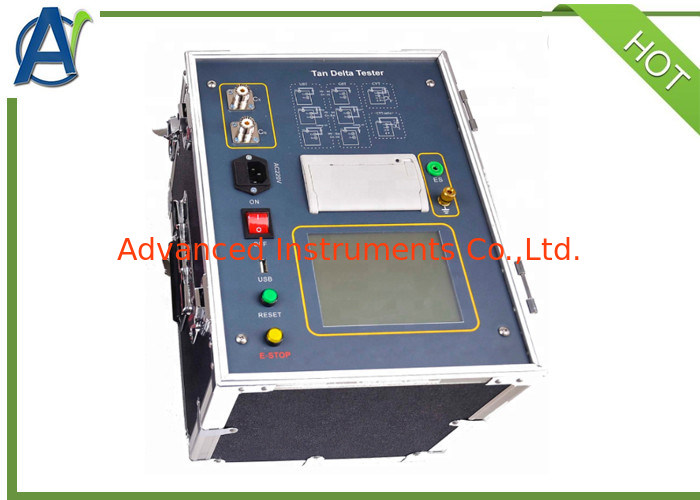

Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester

Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester

Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester

Detalhes do produto:

Lugar de origem: CHINA
Marca: AI
Certificação: ISO
Número do modelo: TDT

Condições de Pagamento e Envio:

Quantidade de ordem mínima: 1 conjunto
Preço: Negociável
Detalhes da embalagem: Caixa
Tempo de entrega: 15 dias úteis
Termos de pagamento: Western Union, T/T, L/C
Habilidade da fonte: 100000 conjuntos por mês
contacto
Descrição de produto detalhada
Fonte de energia: CA 220V±10% Mostrar: LCD
palavra-chave: Analisador Tangente Delta, Testador de Fator de Potência a rendimento elevado: 0.5KV~10KV
Corrente máxima: 200 mA Capacidade: 2000VA
Tamanho: 350*270*270mm Peso: 28 kg



Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester



I.Introduction:

This tangent delta power factor tester is a high-precision instrument, which can be applied to automatically measure electrical loss tangent ( ) and capacitance of all kinds of high voltage electrical equipments on the spot of power plants, substations,laboratory, etc. The instrument is an integrated structure with a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor.




II.Specifications:

1 Use conditions -15℃∽40℃ RH＜80%
2 Anti-interference Frequency conversion
3 Power AC 220V±10% Allowable generator
4 High output 0.5KV∽10KV(rated voltage:10KV) Every 0.1kV
0.5KV∽12KV(rated voltage:12KV)
Precision 2%
Maximum current 200mA (rated voltage:10KV)
167mA (rated voltage:12KV)
Capacity 2000VA
5 Self-excited power AC 0V∽50V/15A 45HZ/55HZ 47.5HZ/52.5HZ
55HZ/65HZ 57.5HZ/62.5HZ
Automatic double frequency
6 Resolving power tgδ: 0.001% Cx: 0.001pF
7 Precision △tgδ:±(Reading*1.0%+0.040%)
△C x :±(Reading*1.0%+1.00PF)
8 measuring range tgδ Unlimited
C x 15pF ＜ Cx ＜ 300nF
rated voltage:10KV 10KV Cx ＜ 60 nF
5KV Cx ＜ 150 nF
1KV Cx ＜ 300 nF
rated voltage:12KV 12KV Cx ＜ 30 nF
5KV Cx ＜ 150 nF
1KV Cx ＜ 300 nF
CVT test Cx ＜ 300 nF
9 CVT range 10∽10000
accuracy 0.1%
Resolving power 0.01
10 Exterior dimension 350(L)×270(W)×270(H)
11 Memory size The 200 groups supports U disk data storage
12 Weight 28 Kg
