| Lugar de origem: | CHINA |
| Marca: | AI |
| Certificação: | ISO |
| Número do modelo: | BDV |
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Caixa |
| Tempo de entrega: | 15 dias |
| Termos de pagamento: | Western Union, T/T, L/C |
| Habilidade da fonte: | 100000 conjuntos por mês |
| Fonte de energia: | AC220V, 50HZ | Mostrar: | LCD |
|---|---|---|---|
| Tensão de saída: | CA 0V~80KV ou 0~100KV | Precisão: | ±(1% da escala completa + 2 dígitos) |
| Garantia: | 1 ano | palavra-chave: | Testador de óleo de isolamento, testador de tensão de avaria BDV |

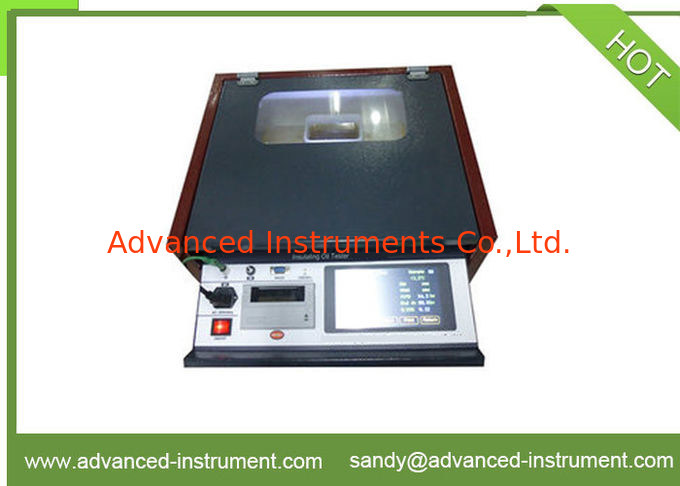

IEC156 80kV Transformer Oil Breakdown Voltage BDV Tester
I.Introduction:
BDV-2 Transformer oil tester is developed according to DL/T846.7-2004 "Insulating oil dielectric tester" standard and the IEC/ASTM international standard. Built-in EEPROM memory can save 100 sets of test data, and test results can be printed at any time. It has the advantages of simple operation, powerful function, stable and reliable, and high degree of automation
II.Specifications:
| No. | Parameters | Specifications |
| 1 | Output voltage | AC 0V~80KV or 0~100KV |
| 2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
| 3 | Max. test times | 9 |
| 4 | Stir time | 0~999s |
| 5 | Wait time | 0~999s |
| 6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
| 7 | Resolution | 0.1KV |
| 8 | Temperature measurement range | 0°C to 70°C, or better |
| 9 | Temperature resolution | 1°C, or better |
| 10 | Data storage | 100 groups |
| 11 | Weight | 38kg |
| 12 | Size | 550 mm*500mm*580mm |
| 13 | Power supply | AC220V, 50Hz |
| 14 | Working environment | Room temperature to 45°C, humidity<85% |
