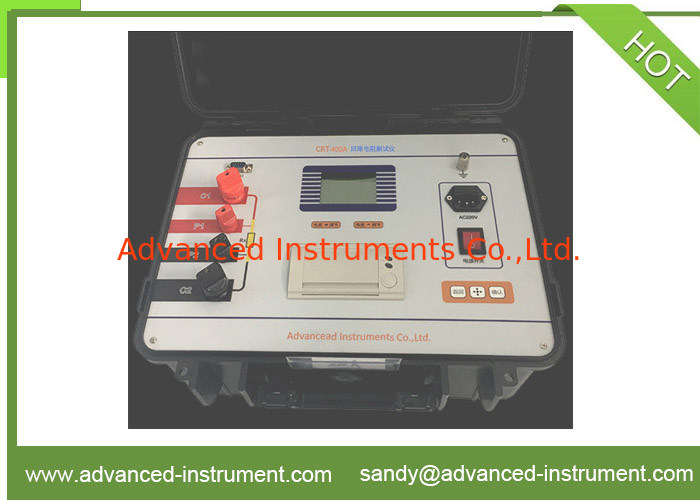

100A 200A 400A 600A Low Contact Loop Resistance Tester
Introduction:
This Low Contact Loop Resistance Tester is used to test the contact resistance of circuit breaker or high current cable contacts. It is designed according to IEC62271. The main application of the tester is the measurement of circuit breaker contact resistance.
Features:
★ Contact resistance measurement
★ Result print
★ Unload data to PC
Specifications:
1.Measurement range: 0-1999.9 μΩ
Resolution:0.1 μΩ
2.Test current: DC 200A/100A for different selection
4. Maximum error< 0.5 %RDG+0.05%FS
5.Display mode: LCD
6. Save no more than 100 groups of data
7. RS232 computer interface
8.Rated power supply:AC220V
9. Size: 340 × 280 × 210mm3
10.Environment temperature:-10 ℃~+40 ℃
Relative humidity<80%
11.Weight:<17kg
