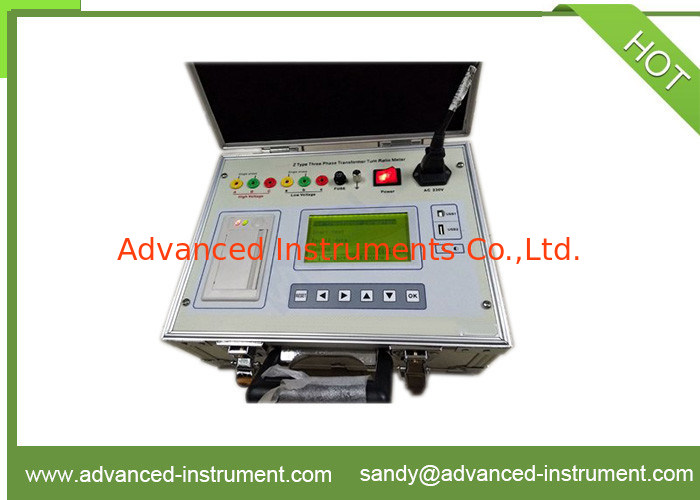

Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table

Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table

    • Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table
    • Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table
    • Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table

    Detalhes do produto:

    Lugar de origem: CHINA
    Marca: AI
    Certificação: ISO
    Número do modelo: TTR

    Condições de Pagamento e Envio:

    Quantidade de ordem mínima: 1 conjunto
    Preço: Negociável
    Detalhes da embalagem: Caixa de madeira compensada
    Tempo de entrega: 15 dias
    Termos de pagamento: Western Union, T/T, L/C
    Habilidade da fonte: 100000 conjuntos por mês
    contacto
    Descrição de produto detalhada
    Fonte de energia: AC220V±10%, 50Hz/60Hz Mostrar: LCD
    Faixa de medição: 1-10000 Grupo de medição: 1-12
    Garantia: 1 ano palavra-chave: Medidor de relação de voltas do transformador, medidor TTR

    Single Three Phase Transformer Turns Ratio Tester TTR Meter



    I. Introduction:

    • This transformer turns ratio tester can test voltage ratio for three or singe phase transformer

    • The group vector measurement for three phase transformer.

    • The polarity measurement for single phase transformer or CT/PT

    • Voltage ratio error calculation

    • Current transformer ratio measurement

    • Excitation current measurement in ratio testing

    • Reproduction the AC test voltage from power source to reduce the effects of bad power source

    • Save the test results in the memory internal the TTR meter

    • This turns ratio meter can print the test results by micro build-in printer

    • Reverse connection detect unit to prevent the high voltage injected to operator

    • Over current protection unit integrated in software and hardware

    • Upload the test results to PC by RS232 and make word report by software



    II. Specifications:

    1 Product Name Single and Three Phase Transformer Turns Ratio TTR Tester
    2 Ratio measurement range 1-10000
    3 Group measurement 1-12
    4 Phase measurement error 1 degree
    5 Ratio measurement error 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
    6 Test voltage 0~80V, frequency 50Hz
    7 Power supply AC220V ± 10%, 50Hz/60Hz
    8 Environment temperature 0-50°C
    9 Humidity ≤85%R
    10 Dimension 58*45*36CM
    11 Weight 22Kg

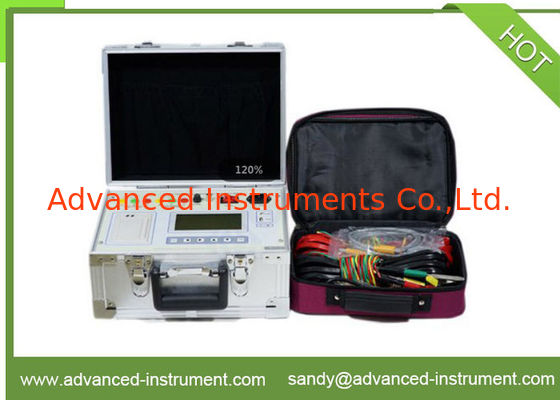

    Spare Package of Single or Three Phase Automatic Transformer Turns Ratio Meter TTR Meter

    Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR TableSingle-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table
