High-Voltage Resonance Tester For GIS Substation And Cable Testing

High-Voltage Resonance Tester For GIS Substation And Cable Testing

    • High-Voltage Resonance Tester For GIS Substation And Cable Testing
    • High-Voltage Resonance Tester For GIS Substation And Cable Testing
    • High-Voltage Resonance Tester For GIS Substation And Cable Testing
    • High-Voltage Resonance Tester For GIS Substation And Cable Testing
  • High-Voltage Resonance Tester For GIS Substation And Cable Testing

    Detalhes do produto:

    Lugar de origem: CHINA
    Marca: AI
    Certificação: ISO
    Número do modelo: RTS

    Condições de Pagamento e Envio:

    Quantidade de ordem mínima: 1 conjunto
    Preço: Negociável
    Detalhes da embalagem: Caixa de madeira compensada
    Tempo de entrega: 15 dias
    Termos de pagamento: Western Union, T/T, L/C
    Habilidade da fonte: 100 conjuntos por mês
    contacto
    Descrição de produto detalhada
    Fonte de energia: 380V±10%, trifásico 50Hz/60Hz Voltagem máxima de saída: 0~1000kV
    Capacidade de saída máxima: 0~6400KVA Escala de frequência do teste: 30~300Hz
    Garantia: 1 ano palavra-chave: Testador de ressonância de alta tensão

    High Voltage Resonance Tester

    Introduction

    High voltage series resonance tester is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the resonance testert is widely applied in GIS, Power cable and generator insulation testing.





    Technial specifications

    1 Max voltage output 0~1000KV
    2 Max output Capacity 0~6400KVA
    3 Test frequency range 30~300HZ
    4 Frequency setting resolution 0.1HZ
    5 Test voltage waveform sine wave,waveform deviation factor : ≤1%
    6 Power supply 380V±10%, three-phase 50Hz/60Hz
    7 Environment condition Temperature: 0~50℃
    8 Humidity ≤ 80%RH

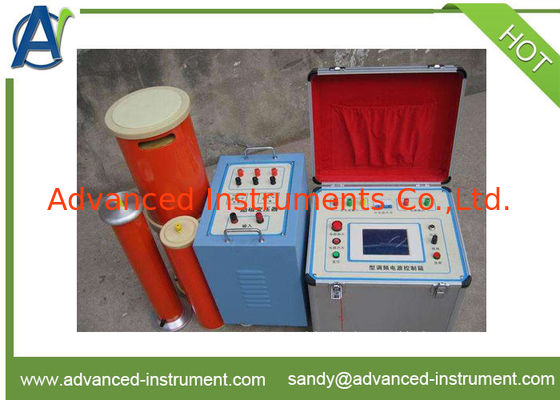

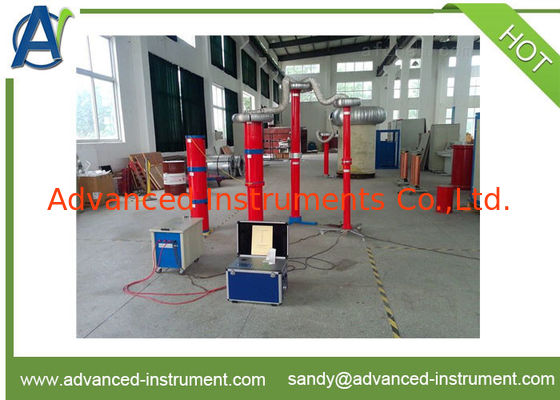

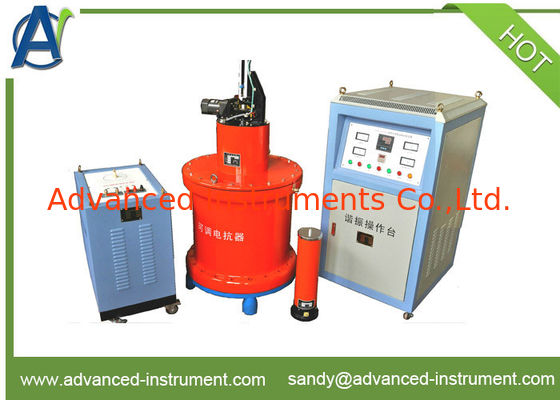

    Photo of High Voltage Resonance Tester

    High-Voltage Resonance Tester For GIS Substation And Cable Testing
