ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator

ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator

    • ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator
    • ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator
    • ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator
    • ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator
    • ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator

    Detalhes do produto:

    Lugar de origem: CHINA
    Marca: AI
    Certificação: ISO
    Número do modelo: CCS-I

    Condições de Pagamento e Envio:

    Quantidade de ordem mínima: 1 conjunto
    Preço: Negociável
    Detalhes da embalagem: Cartão duro
    Tempo de entrega: 20 dias
    Termos de pagamento: L/C, T/T, Western Union
    Habilidade da fonte: 20 séries por mês
    contacto
    Descrição de produto detalhada
    Padrões: GB/T6538, ASTM D2602, ASTM D5293 Método de teste: Simulador de partida a frio CCS
    Escala de controlo da temperatura: -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC Controlar: PC
    Fonte de energia: AC220V, 50HZ Faixa de medição: 1500~15000CP
    Garantia: 1 ano Operação: Automático

    Apparent Viscosity of Engine Oils Tester

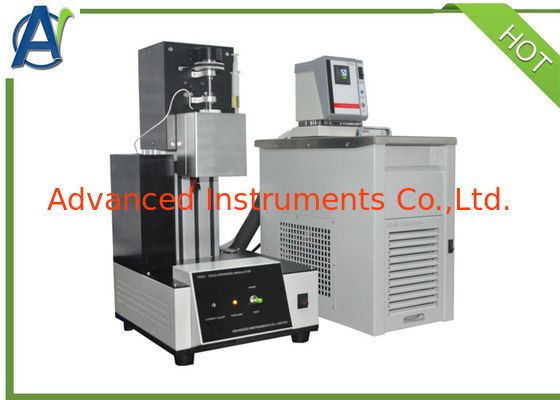

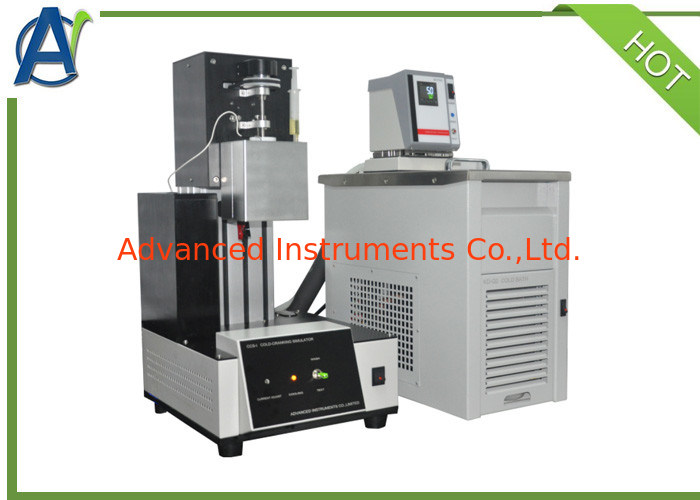

    ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator



    Introduction:

    Cold Cranking Simulator is used to measure the apparent viscosity of engine oil at low temperature (- 35 ºC ~ - 5 ºC). Method summary: Drive a rotor closely matched with the stator by a DC motor, and fill the gap between the rotor and the stator with samples.
    The temperature is controlled by the temperature control system, and the motor speed is corrected with standard oil to make it a function of viscosity. Determine the sample viscosity by measuring the rotation speed. The rotor and stator system of the Cold Cranking Simulator uses a thermoelectric temperature control system. Compared with the previous model, the temperature control is improved, the preheating time is reduced, and the measurement accuracy is improved. The compact structure is easy to install and use.



    Features:

    1.The CCS machine can automatically detect rotation speed,control current,and reduce error;
    2.Refrigerated by semi-conductor;
    3.The     Apparent Viscosity Tester adopts imported motor,accuracy is high;
    4.LCD displays all working status;
    5.It can connect printer to print out result;
    6.Result can be calculated automatically after calibrating with standard oil;
    7.Micro-computer controlling,Windows operation system,complete English interface;
    8.Upgraded rotor,low rotor torque test status,high repeatability;
    9.Automatically generate calibration curve,directly display measured result of viscosity;
    10.All test procedures are controlled automatically,when test is over,it can stop and raise temperature automatically.
    11.The    Apparent Viscosity Tester recommends refrigeration temperature automatically
    12.Rotary encoder detects rotation speed;
    13.Measuring range:1500~15000CP;
    14.It can edit 10 types standard oil results;
    15.This apparent viscosty tester is equipped with low temperature cooling device.




    Specifications:

    Applicated standard GB/T6538, ASTM D2602,ASTM D5293
    Refrigeration method Semi-conductor
    Circulatioini method multifunctional plastic steel pump
    Temp.controlling method Digital PID temperature controller
    Detection method Manual sampling,automatic cleaning,automatic test
    Data processing Automatic saving
    Temp.controlling range -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC (optional -40ºC)
    Power supply AC220 V 50Hz
    Temperature controlling accuracy ±0.02ºC
    Working units 1
