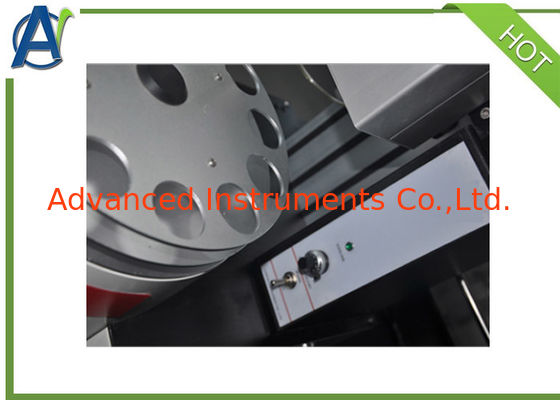

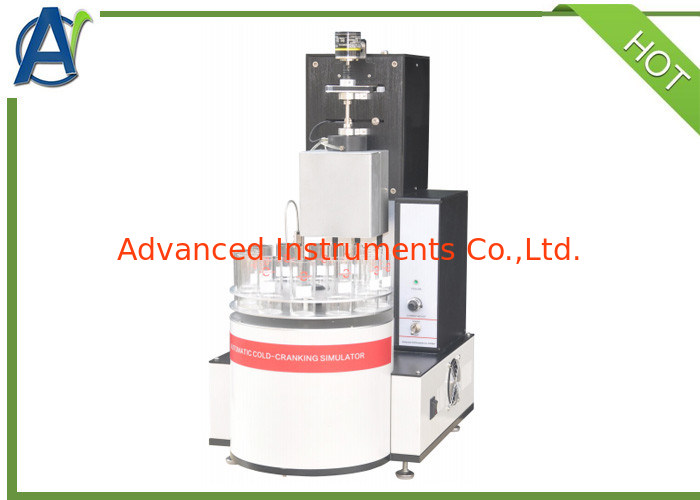

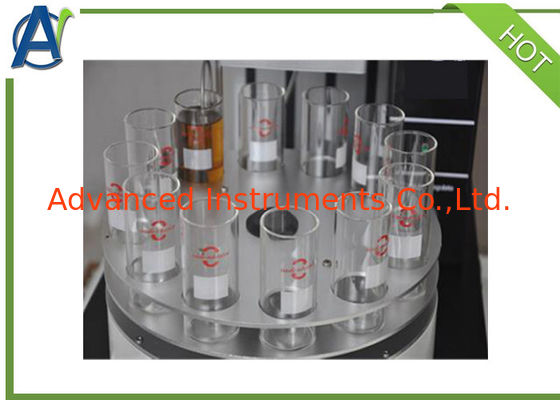

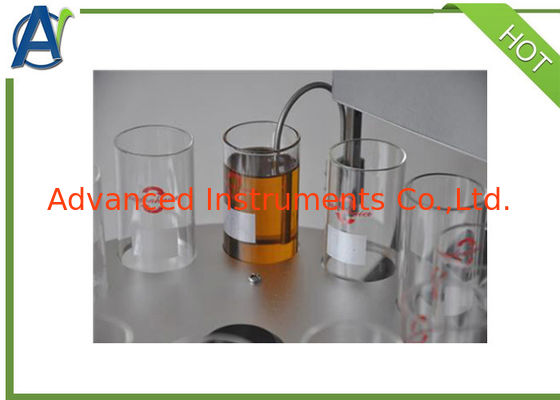

Cold Crank Simulator CCS Machine
Introduction:
The CCS machine mainly tests the low-temperature dynamic viscosity index of engine oil, and the instrument is automatically controlled by a computer. Automatic sampling,cleaning, and viscosity calculation results.
This Cold Crank Simulator Apparatus is the best in China.
Features:
1. The Cold Crank Simulator CCS Machine can automatically detect speed and control current, reduce human error;
2. Driven by imported motor, high precision；
3. Semiconductor refrigeration system can quickly test any temperature;
4. The result is automatically calculated after calibration by standard oil；
5. Computer control, Windows operating system, XP, Win7, can be connected to a printer to print results;
6. Improved rotor, low torque test state, high repeatability;
7. Automatically generate calibration curve and directly display the test viscosity result;
8. All test processes are controlled automatically without manual operation, and the test will automatically stop and increase
temperature after the test;
9. The CCS machine automatically recommends the refrigeration temperature;
10. Rotary encoder detects speed;
11. Viscosity measurement range: 1500～15000CP;
12. The results of 20 standard oils can be edited;
13. This Cold Cranking Simulator is equipped with dedicated low-temperature refrigeration cycle equipment
14. The Apparent viscosity tester can automatically calculate the standard oil calibration deviation to help users check the accuracy of the calibration data;
15. Patent of lubricating oil apparent viscosity tester using semiconductor refrigeration, patent number: ZL201822076893.4
16. Patent of lubricating oil apparent viscosity tester with automatic sampling and automatic cleaning structure, patent number:
ZL201822076944.3.
Specifications:
| Applicated standard |
GB/T6538, ASTM D2602,ASTM D5293 |
| Refrigeration method |
Semi-conductor |
| Circulatioini method |
multifunctional plastic steel pump |
| Temp.controlling method |
Digital PID temperature controller |
| Detection method |
Automatic sampling,automatic cleaning,automatic test |
| Data processing |
Automatic saving |
| Temp.controlling range |
-5℃ -10℃ -15℃ -20℃ -25℃ -30℃ -35℃ (optional -40℃) |
| Power supply |
AC220 V 50Hz |
| Temperature controlling accuracy |
±0.02℃ |
| Working units |
12 |
