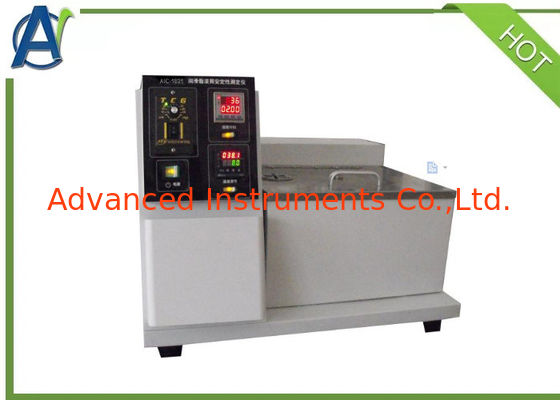

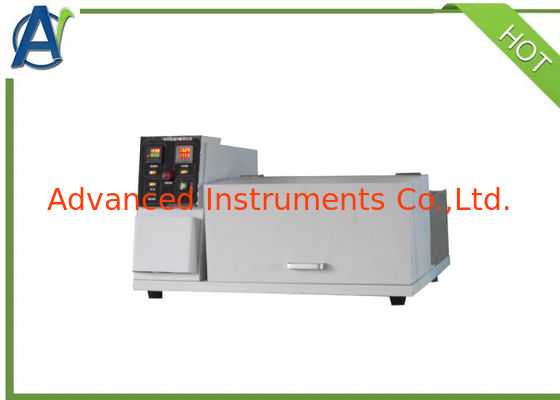

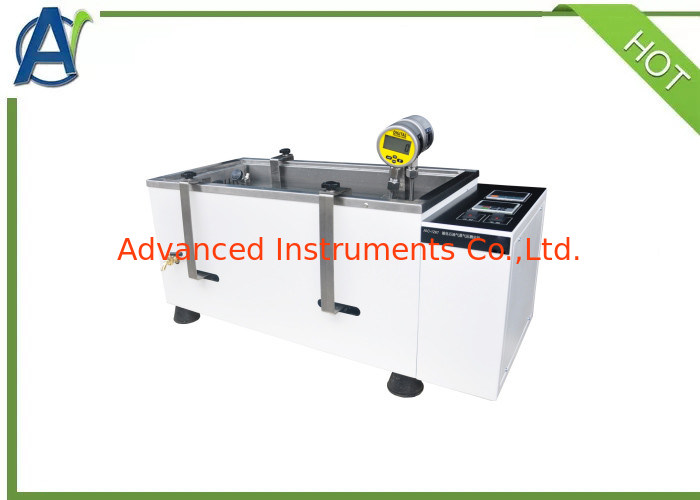

This instrument is mainly suitable for detecting liquefied petroleum gas whose boiling point is higher than 0℃, hydrocarbon volume content is less than 5%, and its vapor pressure is not more than 1550KPA at 37.8℃. When the instrument is used,the cooled sample is filled into the oxygen bomb of the vapor pressure tester, and the oxygen bomb is connected with the gas detector.
I.Main features
◆Imported Omron PID temperature controller, digital continuous display temperature, accuracy 0.1℃
◆The instrument is made of cold-rolled steel plate, and the surface is treated with electrostatic spray, which is corrosion-resistant
and easy to clean.
◆Instrument welding adopts butt welding technology, no solder joints, beautiful and generous.
◆The instrument adopts imported pressure transmitter with high pressure display accuracy.
◆All stainless steel inner tank of water bath to prevent rust.
◆Imported quick connector, plug and use, no leakage, easy operation.
II.Technical specification
|
Model
|
AIC-1267
|
|
Applicable Standard
|
GB/T6602 ASTM D1267 ISO 256
|
|
Temperature control
|
Import PID digital thermostat
|
|
Temperature controlling accuracy
|
Ambient～70±0.1℃
|
|
Oscillation mode
|
Automatic horizontal oscillation without manual operation
|
|
Working units
|
2 bombs
|
|
Pressure correction
|
Externally can be connected to a precision pressure regulator,
internally equipped with fine-tuning function
|
|
Power supply
|
1.5KW
|
|
Dimension
|
900*400*460mm
|
|
Weight
|
48KG
|
| Color |
White |
II.Accessories list
|
No.
|
Name
|
Quantity
|
Unit
|
| 1 |
Main unit
|
1 |
Set
|
| 2 |
Fuse 20A
|
4 |
PCS
|
| 3 |
Test bomb
|
2 |
Set
|
| 4 |
User manual
|
1 |
Copy
|
