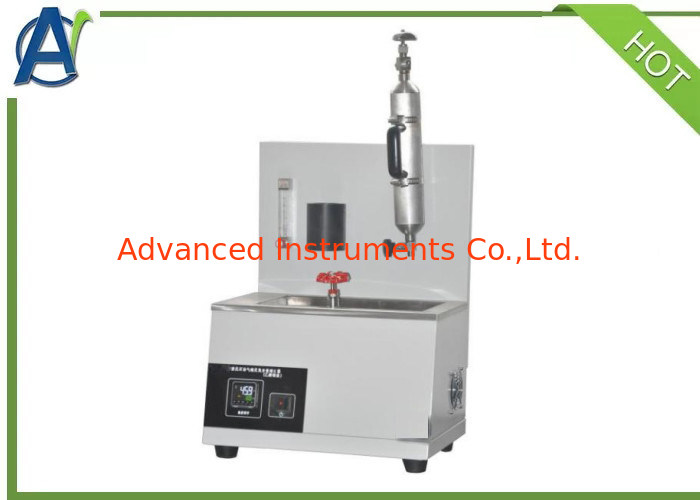

ASTM D2420 Liquefied Petroleum Gas Hydrogen Sulfide Test Apparatus

ASTM D2420 Liquefied Petroleum Gas Hydrogen Sulfide Test Apparatus

ASTM D2420 Liquefied Petroleum Gas Hydrogen Sulfide Test Apparatus

Detalhes do produto:

Lugar de origem: CHINA
Marca: AI
Certificação: ISO
Número do modelo: AIC-2420

Condições de Pagamento e Envio:

Quantidade de ordem mínima: 1
Preço: Negociável
Detalhes da embalagem: Caixa de madeira compensada
Termos de pagamento: L/C, D/A, Western Union, T/T
Habilidade da fonte: 20 conjuntos/mês
contacto
Descrição de produto detalhada
Padrão de teste: ASTM D2420、SH/T0125 Método de aquecimento: Aquecedor
Método de controle de temperatura: Termostato PID Digital Fonte de energia: AC220V/50Hz
Potência total: 1000W Tamanho: 440*310*600mm
Peso: 20kg Gás: banho de evaporação quente
Demonstrador: 500ml palavra-chave: Testador de sulfeto de hidrogênio

Introduction
This ASTM D2420 LPG Hydrogen Sulfide Tester is used to detect the presence or absence of hydrogen sulfide in liquefied petroleum gas. The lower limit of detection of hydrogen sulfide is 4mg/m3.If methyl mercaptan is present on the lead acetate test strip, it will produce a short-term yellow stain, but it will disappear completely in less than 5 minutes.Other sulfides in liquefied petroleum gas do not interfere with this test.

I. Main features
1.The test glass tube meets the requirements of the standard, with a glass hook inside.
2. LPG Hydrogen Sulfide Tester provides 500ml stainless steel sampler.
3.The gas passes through the thermal evaporation bath and the needle valve adjusts the flow.
4.LPG Hydrogen Sulfide Tester adopts imported Omron PID temperature controller, digital continuous display temperature, accuracy 0.1ºC.



II.Technical specifications
Applicable Standard ASTM D2420, SH/T0125
Heating mode Electric heating tube
Temperature controlling mode Digital PID thermostat
Flow control Needle valve adjustment, flow meter displays flow
Power supply AC220V/ 50HZ
Total power 1000W
Dimension 440*310*600mm
Weight 20KG



III.Pacakge list
No. Name Quantity Unit
1 LPG Hydrogen Sulfide Test Instrument 1 Set
2 Fuse 20A 4 PC
3 Sampling cylinder 500ml 1 PC
4 Glass hook 1 PC
5 Fuse 20A 4 PC
6 Rubber stopper 10# 1 PC
7 Glass cylinder 1 Set
8 Watch glass 1 PC
9 Glass connecting pipe 1 Root
10 Breathing pipe 1 PC
11 Test strip 1 Box
12 User manual 1 Copy
