Product description:

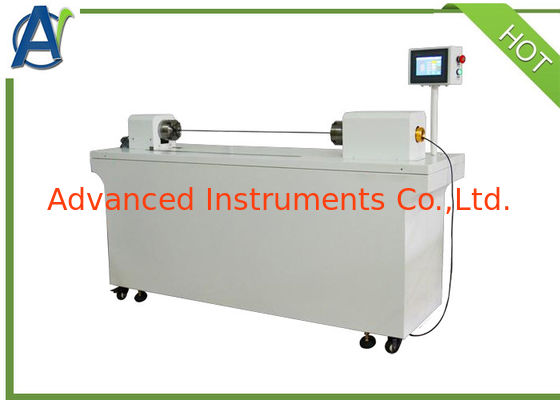

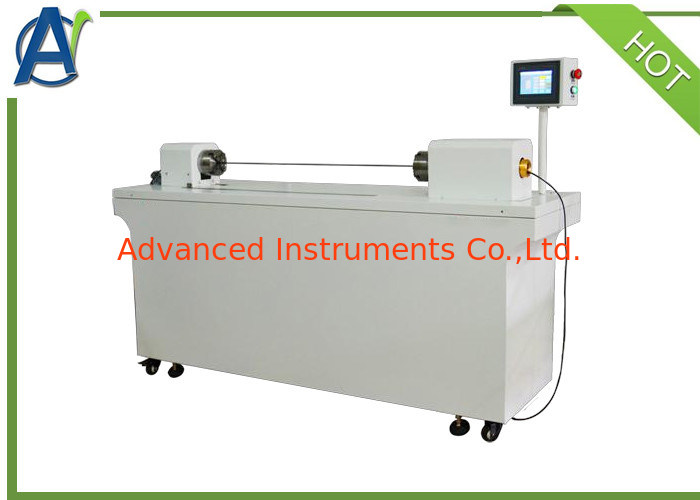

Optical cable torsion test equipment is suitable for measuring the attenuation of transmission when optical fiber cable outer sheaths being forced by external torsion, as well as evaluating the possibility of torsional stress due to the physical damage.
Standards:
• GB / T 7424.2-2008
Features:
• Human-machine interface and PLC control;
• Xinje color display test parameters and test data;
• Digital display, intuitive, easy to read;
• Automatically record the number of repeated bending tests, automatically shut down when test is complete;
• Xinje servo drive system, smooth transmission, reliable operation.
Technical parameters:
• Specimen diameter range: Φ2.5 ~ 30mm
• Twist length: 1000mm
• Twist rate: 5 to 30 times / min, settable arbitrarily
• Twist times: 1 to 9999, settable arbitrarily
• Twist angle: ±90° , ± 180° , ± 360° , settable arbitrarily
• Weight: 5kg×4, 2.5kg × 1 (customized)
• Motor: 0.75KW XINJE servo motor
• Grips: four-jaw chuck
Specifications:
• Overall dimensions: 2050mm × 630mm × 1420mm
• Power supply: AC220V, 50 ~ 60Hz
