ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method

ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method

    • ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method
    • ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method
    • ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method
    • ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method

    Detalhes do produto:

    Lugar de origem: CHINA
    Marca: AI
    Certificação: ISO
    Número do modelo: EGT-I

    Condições de Pagamento e Envio:

    Quantidade de ordem mínima: 1 conjunto
    Preço: Negociável
    Detalhes da embalagem: Cartão duro
    Tempo de entrega: 20 dias
    Termos de pagamento: Western Union, T/T, L/C
    Habilidade da fonte: 20 séries por mês
    contacto
    Descrição de produto detalhada
    Padrão de teste: Equipamento de teste de goma existente ASTM D381 Método de teste: Método de evaporação a jato
    Temperatura de trabalho: (160~165)℃ Dimensão geral: 590*480*340mm
    Fonte de energia: CA (220 ± 10%) V, 50Hz Consumo de energia: 2,5kW
    Unidades de funcionamento: 3 Garantia: 1 ano
    palavra-chave: Equipamento de teste de presença de óleo combustível

    ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method

    Summary

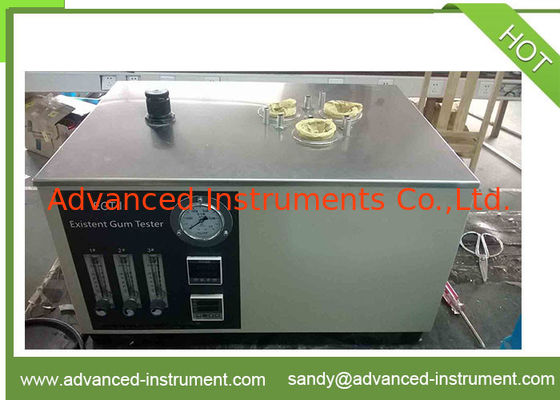

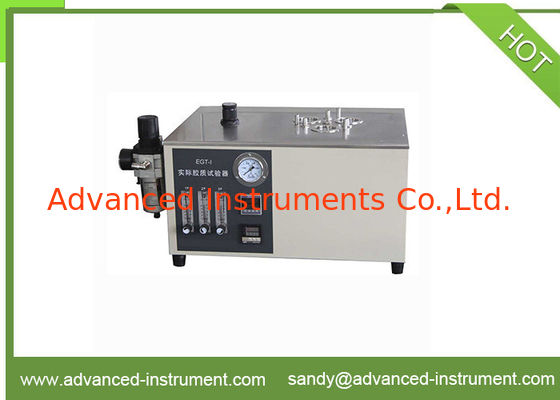

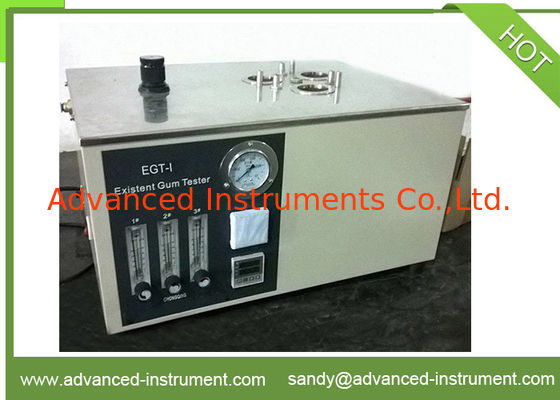

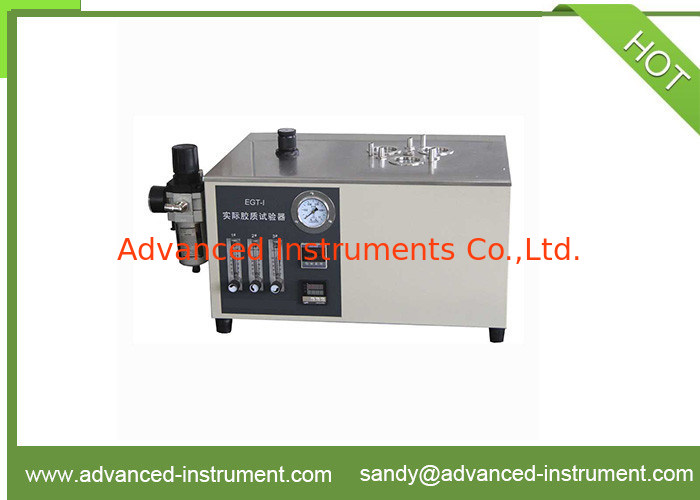

    This existent gum tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline (Not suitable to determine the existent gum content of aviation turbine fuel)

    I. Main technical features
    1. This existent gum apparatus equips a specially designed heating bath. The gas circuit is designed reasonably and the effect of evaporation is good.
    2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
    3. This existent gum instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.

    II. Main technical specifications
    Power supply AC(220±10%)V,50Hz,2500W
    Dimension of evaporation bath Φ260mm*130mm
    Sample positions 3 positions
    Dimension of sample positions Φ51mm*70mm
    Working temperature (160~165)℃
    Temperature control Automatic
    Temperature display Digital display
    Flow display Displayed by a ball float type flowmeter.
    Working pressure of air reducing valve 0.035MPa
    Air source External connection, over (1000±150)ml/s
    Dimension 590*480*340mm (Thermometer holder is not included)


    III.Accessories

    No. Item Unit Qty Remarks
    1 Air compressor Set 1
    2 Air compressor power supply line(Connected by air compressor specification requirements) Piece 1 Instructions included
    3 Trumpet type nozzle Piece 3
    4 Thermometer holder Piece 3
    5 Beaker Piece 6
    6 Thermometer (-5℃〜400℃, scale division is ±1℃) Piece 4
    7 15 A fuse (Φ5×20) Piece 2
    8 Air hose Piece 1
    9 Sintered glass funnel Piece 1
    10 Stainless steel forceps (25 cm) Piece 1
    11 Crucible pliers Piece 1
    12 Air filter assembly Set 1 User-installed






    There are 3 models Existent Gum Test Equipment,model I is 3 positions,model II is 5 positions,and model III is supplied with steam generator for aviation jet fuel analysis.
